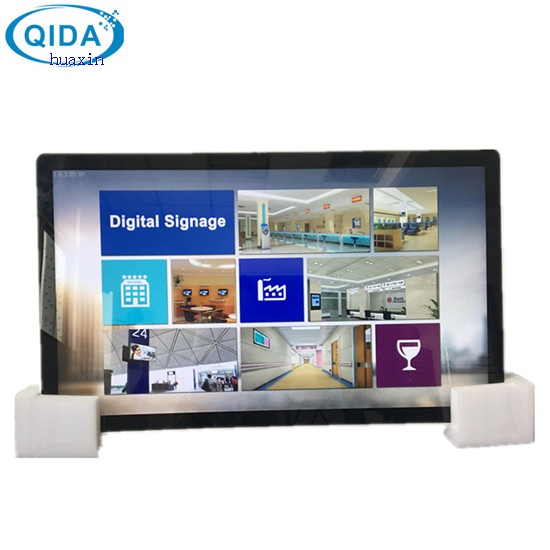

Product name : 21" wall mount indoor HD lcd led backlight monitor advertising display

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Digital signage is a sub segment of signage, also called dynamic signage and digital sign. digital signage use technologies such as HD, Android, wifi, 3G/4G, network, indoor, outdoor, lcd, led and projection to display content like text, images, video and audio shown in digital formats over the digital signage player.

The signage display can be free standing on the floor, mounted on the wall and built into customer’s other display equipment.

Different signage displayer is used in different areas, such as chain store, shopping mall, museums, restaurants, airport, hotel, school and buildings.

Our company is the professional manufacturer to help customers to develop, design and make out their idea digital signage display with OEM logo, provide basic signage publish software free of charge.

Digital signage features:

1. Display messages, advertising, news..

2. Wifi, Android, network/windows

3. USB, VGA, HDMI

4. Can built in with touch screen for information checking.

5. Small size: 7” 8”9”10.1”14”15”…

6. Medium size: 18”19”21.5”…

7. Large size: 32”42”55”65”75”84”

8. Indoor outdoor

9. Wall mount, stand floor and open frame

10. Infrared touch screen and capacitive touch screen

Digital signage specification:

Model:	Digital signage
Screen size:	21.5” 32”42" 55” 65”
Display size (mm):	930*523
Life:	≥50000h
Backlight:	LED
Angle:	178/178 UD/LR
Brightness:	450cd/m2
Display ratio:	16:09
Response time:	5-8ms
Color:	16.7M
Resolution:	1080X1920
Digital signage Computer Main Specifications:
System:	X86 system（WIN7/XP/WIN8）
CPU:	intel Celeron 1037U 1.8GHZ
Hard disk:	SATA 500G
Memory:	Kingston DDR3 1333 4G
Graphics card:	CPU integrated Graphics display
Audio decode:	Integrated 6 channel sound, support HiFi 5.1
Port:	VGA,HDMI,AV,USB,RJ45,PS/2
Function:	X86 architecture host
	Through WIFI, WLAN Access Network
	Support all video, documents, network streaming media formats
	Perfect with the mainstream applications, greatly facilitate the development of customers
	Low power consumption ultrathin Power Supply
Digital signage Touch screen Specifications:
Touch technology:	Infrared touch screen, standard for 2 point touch, extended to support 6-10 point;
Writing Mode:	Finger, stylus or other non transparent objects over 5mm
Response time:	4ms
Touch times:	more than 50 million times
Light resistance:	Full angle anti glare
Interpolated resolution:	32768*32768
Positioning accuracy:	≤±0.5mm
Communication:	USB
Touch effective area (mm):	523*930
Digital signage HD display Specifications:
CPU:	A9 single core, 1G
Storage:	256M DDR3 1600M
Memory:	Built in 8G (7.3G available)
Support video format:	MPEG2、AVI、MP4、DIV、TS、TP、TRP、MKV、MOV、DAT、ASF、WMV
Support pic format:	JPEG、PNG（resolution up to 15000*15000）
Support audio format:	MP3、MP2、WMA、WAV
Video decode:	Maximum resolution 1920*1080 / Maximum color depth 24bit / Maximum frame 30frm/s / Maximum bit rate USB2.0 device:30Mb/s
Audio decode:	Sampling rate 32kHz, 44.1kHz, 48kHz, 96kHz / bit rate 32kbps to 384kbps Max, 480Mbps USB2.0
Port:	USB2.0，Max 480Mbps
Function:	Video support completely seamless handover (currently similar products on the market two video switching have one to two seconds of black or need to pause processing)
	Video 90 degree turn over without tools for transcoding. Support the menu and play content (video and pictures) 90, 180, 270 degree rotation.
	Boot automatic play / support timer switch function / support super long running water subtitles display function, can adjust the font size and speed of scrolling subtitles
	Support files directly copy and delete / support USB playback, support hot plug, convenient and quick to update content
	Play mode: single repeat player, folder cycle player, full cycle playback
	Picture playback: rotation, scaling, translation, slide show, background music playback
	Audio mode: left, right, stereo
	OSD multi language support: Chinese, English and other languages / calendar function
Expanding function:	Support USB to update and upgrade the program directly
Expanding function:	Support split screen function
Digital signage Android Specifications:
System	Android 4.4
CPU:	quad-core ARM Cortex-A9 schema CPU，Main frequency 1.8G RK3188
Storage:	NAND FLASH/EC 8GB
Memory:	DDR3 1G
Port:	USB/USB OTG/RJ45/TF Port/Antenna Port
Function:	with Signagelink information release system，Using B/S architecture，you can control the network terminal advertising machine via mobile network, WLAN,WIFI by anytime in anywhere.
	Supports all video, file, network streaming media format;
	Support split screen, support combination and design program content;
	remote control playback time, volume,monitor prograe and inter-cut,dibble seeding
	Support for USB playback , USB update , USB upgrade function

Digital signage warranty:

1 year

1. first, you can write emails to me ,or video to show the problem. we will help solve it online.

2. If there is some parts need to be changed, we will ship to you.

Normally, our products have few problems, as we have more than 10 years in manufacturing this product. many prototype and hot selling models, are innitially from our factory.

Digital signage payment

Digital signage package

All of our digital signage products are packed with carton box and wooden box

Digital signage shipping

Fedex, DHL, UPS, Air, Sea
